Prominance
INVENTA - Sliding SYSTEM

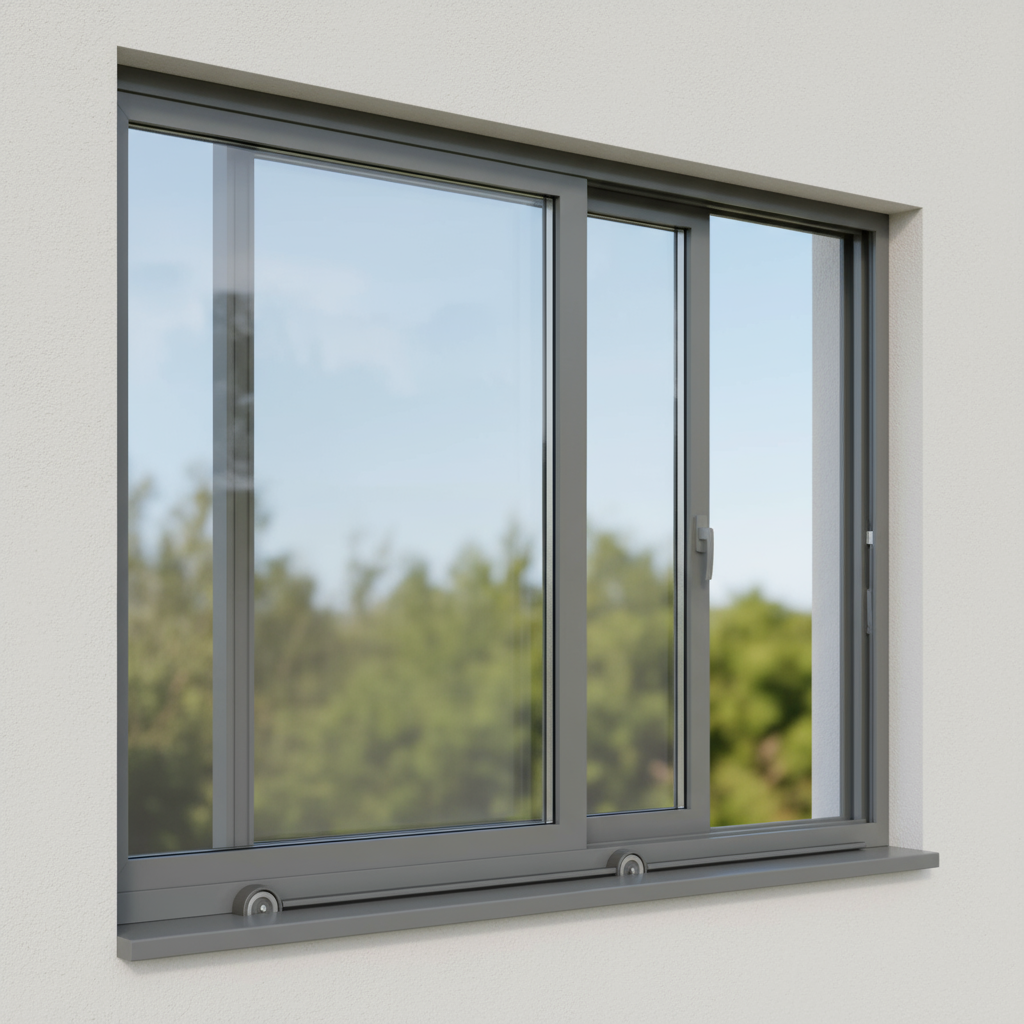

Inventa Sliding uPVC Windows features two (or more) horizontal sashes fitted with rollers at the bottom for swift sideways movement on tracks. Easier and faster to operate, they are great for air circulation and panoramic views.
Specifications
Track Size
2 Track
62mm/52mm
3 Track
112mm/52mm
Frame Size
Max. Height
2400mm
Max. Width
2400mm
Sash Section Size
Min.
42mm/68mm
Max.
42mm/88mm
Sash Size
Max. height
2400mm
Max. Width
1200mm
Glass Width
Min.
5mm
Max.
24mm
